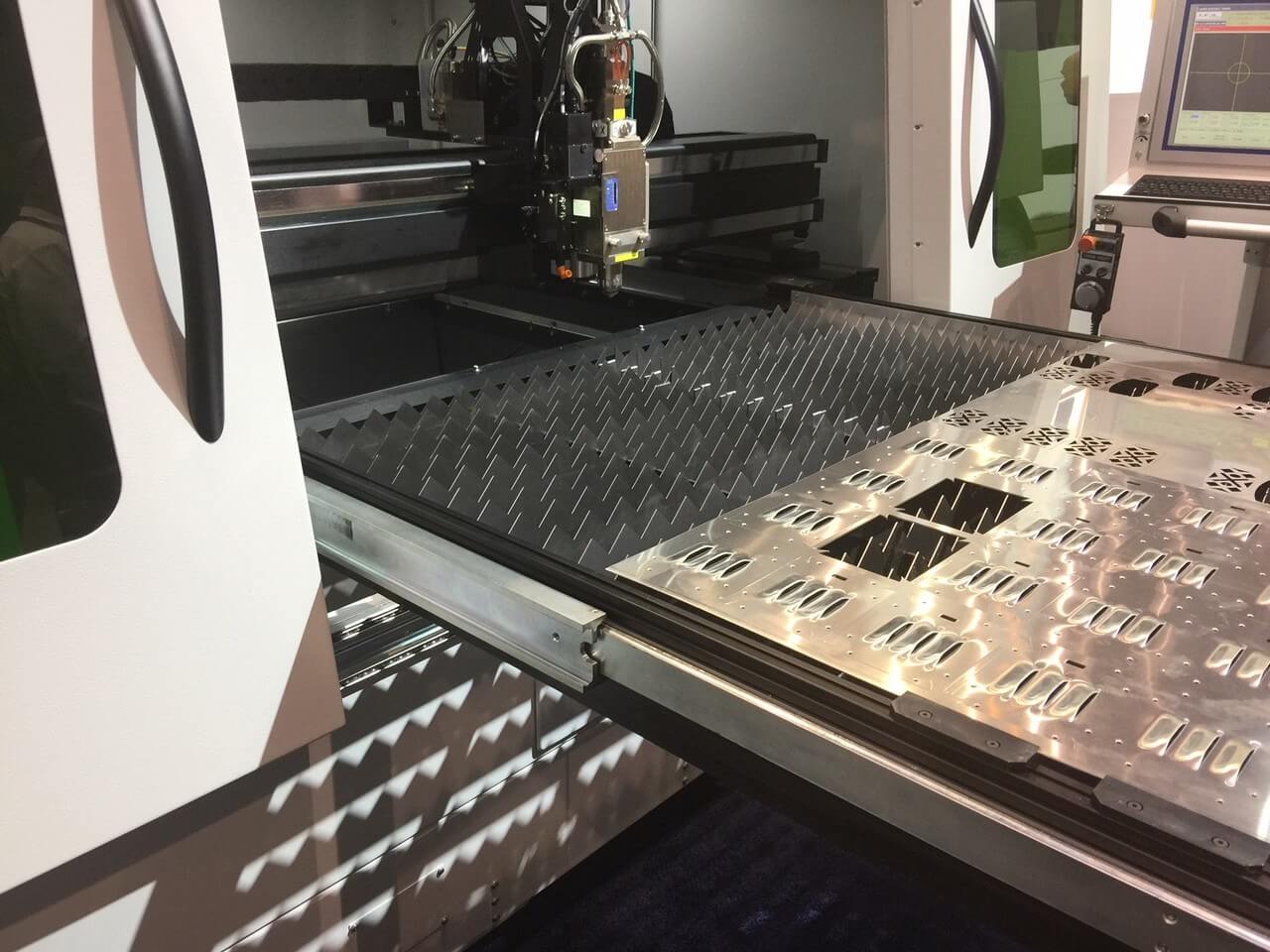

非常兴奋能够见证吉士孚的滑轨产品被整合在业界最趋势的自动化系统并于12/15 ~12/18在台北国际自动化工
供应全球优质的滑动承载延伸系统
4015.SDTSB90 (238-735kg)
| 安装间隙: | 36mm |
| 高度: | 90mm |
| 闭合长度: | 200-2400mm |
| 延展长度: | 200-2400mm |
| 最大载重: | 238-735 kg/pair |
| 滑轨节数: | 3 |
| 延展程度: | Total |
| 材质: | Stainless Steel 316L |
| 抗震动性: | 8 |

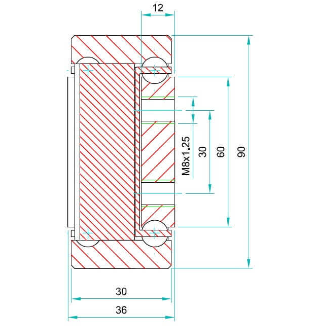

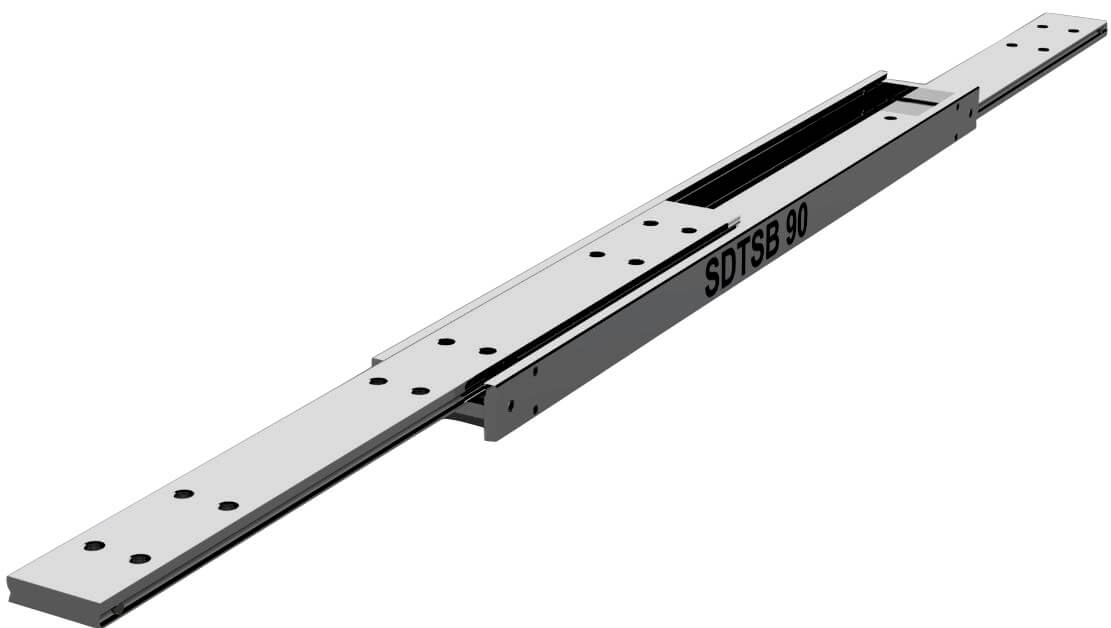

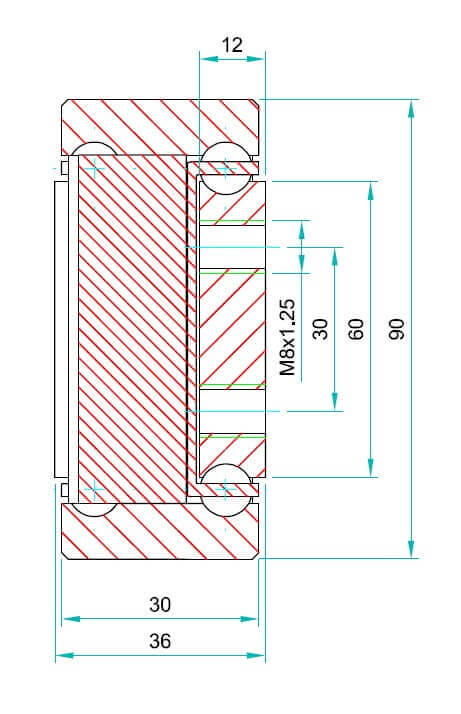

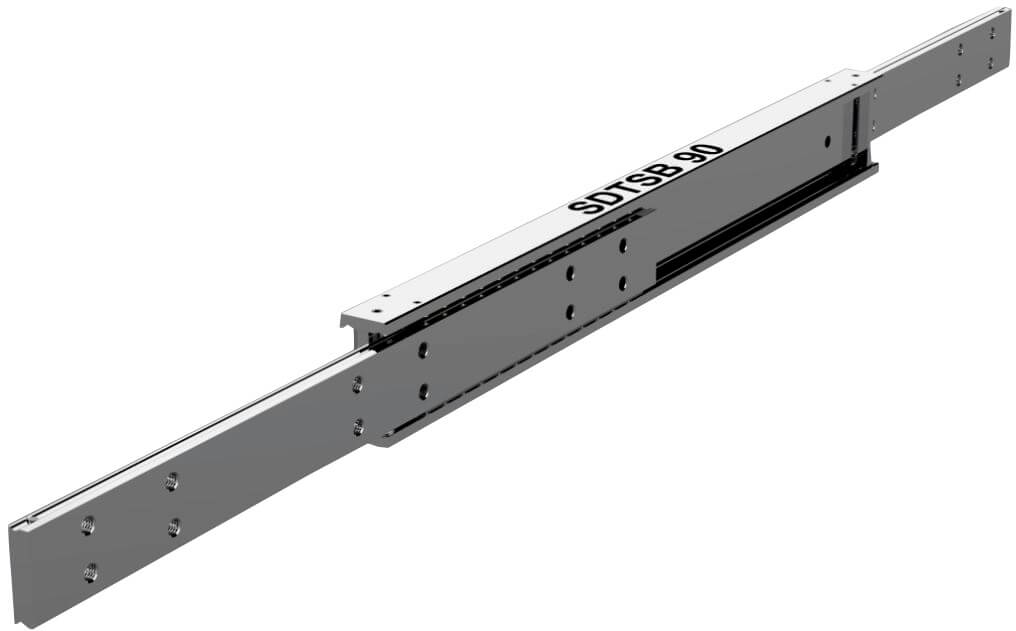

SDTSB-90是一款可向前向后完全延展的坚固伸缩导轨, 设计在导轨本身的特殊摆片机件使得内外轨能够按顺序且流畅的双向滑移。适合应用于连通车体两侧的抽屉。
本款导轨双向行程100%, 载重能力238-735kg/对, 导轨在550mm长可以向前向后延展550mm, 载重达到672kg。由三节不锈钢316L制成, 并装配珠槽及钢珠。导轨具备相当好的抗震抗冲击性能, 因此适合安装于军用车辆抽屉、海上收纳、火车电池箱。钢梁、珠槽和钢珠均采用奥氏体不锈钢316L (1.4404)制造。螺栓和档销则采用奥氏体304 (1.4301)制成，以达到全面性抗腐蚀效果。如有需求，还可以依据更高的订购数量要求定制全316L产品。

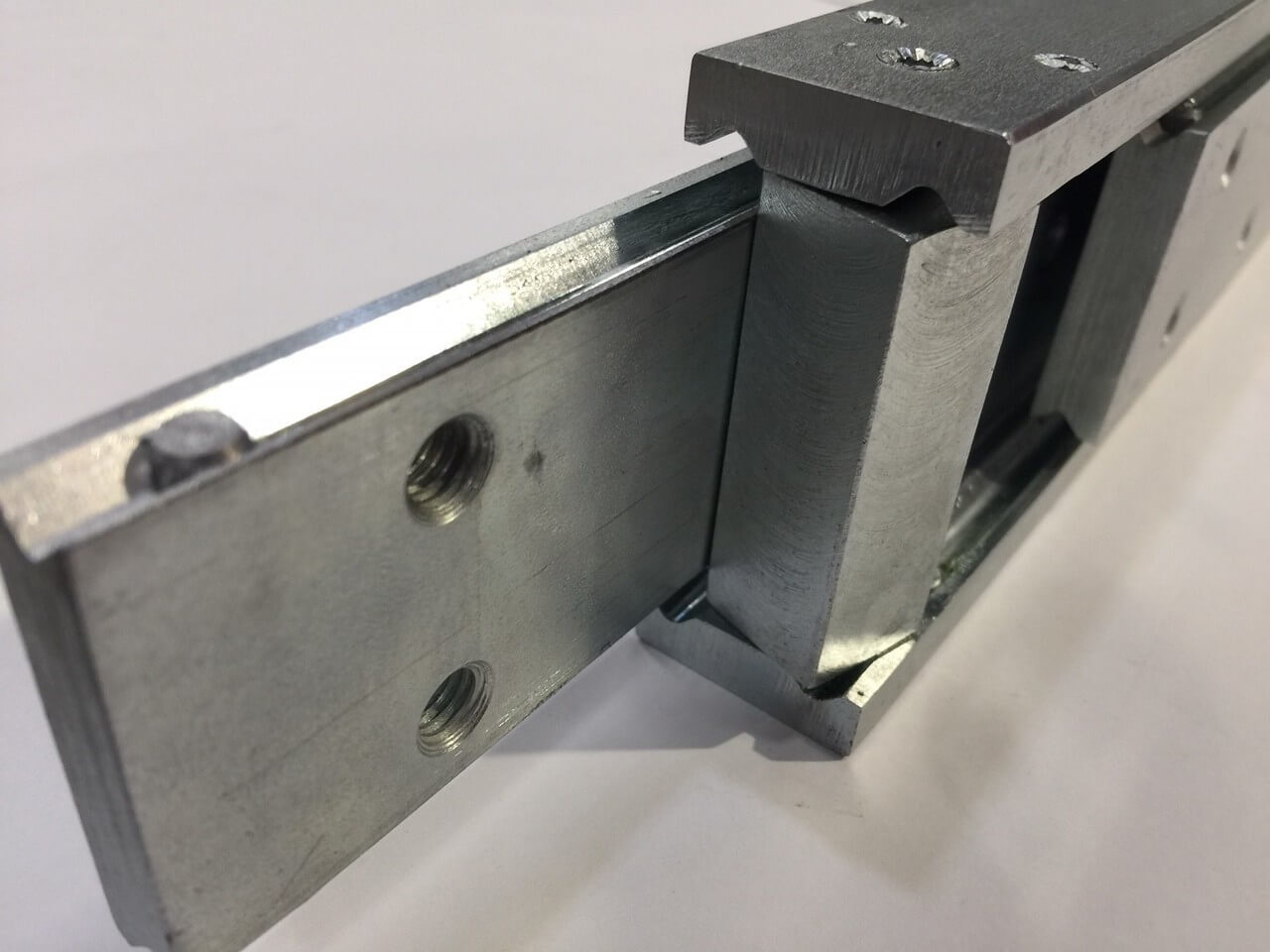

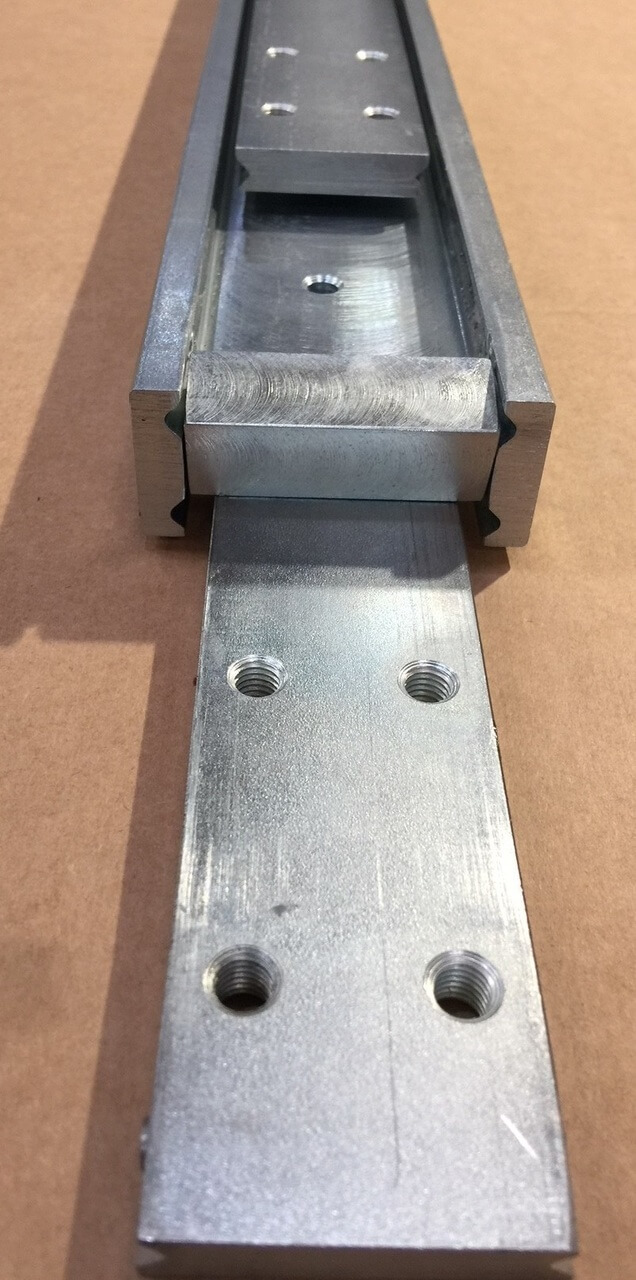

受惠于工字梁结构的高强度, 本款导轨采用在展开时能够提供强大的刚性, 使其成为动态应用的绝佳选择。与许多其他由冷轧C型钢制成的导轨不同。导轨无使用任何塑料部件, 因此适合用于极端温度环境。316L奥氏体不锈钢具备极低的电磁特征, 非常适合国防应用。
我们不建议将标准品SDTSB导轨应用于机械取放物设备或穿梭车，在进行工厂校调适应和客户实际应用测试核可前我们无法承诺生产, 此导轨受限于最大运行速度< 0.3m/s。
SDTSB-90导轨也可以安装在短轴上使用(平躺), 但负载能力将会下降60~80%。单支SDTSB-90导轨每公尺重19.38kg。
请容许6-8周生产时间，或与我们订定库存计划。
产品编号 | 闭合长度 (mm) | 延展长度 (mm) | 最大载重 (kg) |
|---|---|---|---|
| 4015.SDTSB090.0200 | 200mm | 200mm | 520kg |
| 4015.SDTSB090.0250 | 250mm | 250mm | 540kg |
| 4015.SDTSB090.0300 | 300mm | 300mm | 560kg |
| 4015.SDTSB090.0350 | 350mm | 350mm | 581kg |
| 4015.SDTSB090.0400 | 400mm | 400mm | 602kg |
| 4015.SDTSB090.0450 | 450mm | 450mm | 623kg |
| 4015.SDTSB090.0500 | 500mm | 500mm | 658kg |
| 4015.SDTSB090.0550 | 550mm | 550mm | 672kg |
| 4015.SDTSB090.0600 | 600mm | 600mm | 686kg |
| 4015.SDTSB090.0650 | 650mm | 650mm | 700kg |
| 4015.SDTSB090.0700 | 700mm | 700mm | 721kg |
| 4015.SDTSB090.0750 | 750mm | 750mm | 728kg |
| 4015.SDTSB090.0800 | 800mm | 800mm | 735kg |
| 4015.SDTSB090.0850 | 850mm | 850mm | 731kg |
| 4015.SDTSB090.0900 | 900mm | 900mm | 721kg |
| 4015.SDTSB090.0950 | 950mm | 950mm | 710kg |
| 4015.SDTSB090.1000 | 1000mm | 1000mm | 696kg |
| 4015.SDTSB090.1050 | 1050mm | 1050mm | 686kg |
| 4015.SDTSB090.1100 | 1100mm | 1100mm | 665kg |
| 4015.SDTSB090.1150 | 1150mm | 1150mm | 644kg |
| 4015.SDTSB090.1200 | 1200mm | 1200mm | 630kg |
| 4015.SDTSB090.1250 | 1250mm | 1250mm | 616kg |
| 4015.SDTSB090.1300 | 1300mm | 1300mm | 595kg |
| 4015.SDTSB090.1350 | 1350mm | 1350mm | 574kg |
| 4015.SDTSB090.1400 | 1400mm | 1400mm | 553kg |
| 4015.SDTSB090.1450 | 1450mm | 1450mm | 518kg |
| 4015.SDTSB090.1500 | 1500mm | 1500mm | 497kg |
| 4015.SDTSB090.1550 | 1550mm | 1550mm | 483kg |
| 4015.SDTSB090.1600 | 1600mm | 1600mm | 462kg |
| 4015.SDTSB090.1650 | 1650mm | 1650mm | 448kg |
| 4015.SDTSB090.1700 | 1700mm | 1700mm | 434kg |
| 4015.SDTSB090.1750 | 1750mm | 1750mm | 406kg |
| 4015.SDTSB090.1800 | 1800mm | 1800mm | 378kg |
| 4015.SDTSB090.1850 | 1850mm | 1850mm | 350kg |
| 4015.SDTSB090.1900 | 1900mm | 1900mm | 329kg |
| 4015.SDTSB090.1950 | 1950mm | 1950mm | 308kg |
| 4015.SDTSB090.2000 | 2000mm | 2000mm | 294kg |
| 4015.SDTSB090.2100 | 2100mm | 2100mm | 280kg |
| 4015.SDTSB090.2200 | 2200mm | 2200mm | 266kg |
| 4015.SDTSB090.2300 | 2300mm | 2300mm | 252kg |
| 4015.SDTSB090.2400 | 2400mm | 2400mm | 238kg |
