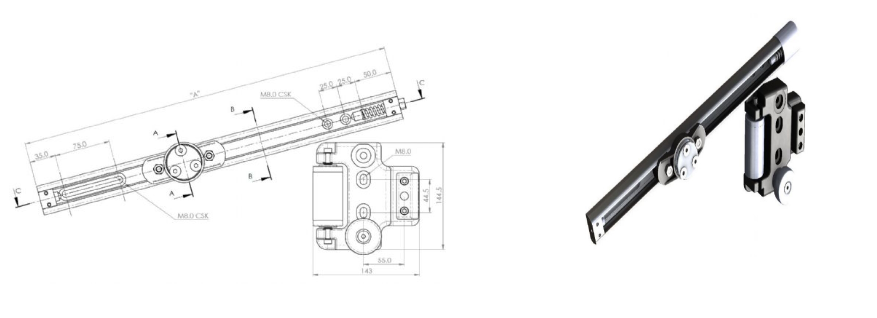

4070.SYST - Slide & Tilt
| 安装间隙: | 45mm |
| 高度: | 150mm |
| 闭合长度: | 400-2000mm |
| 延展长度: | 190-1790mm |
| 最大载重: | 90 kg/pair |
| 滑轨节数: | 2 |
| 延展程度: | Partial |
| 材质: | Aluminium & GRP |
| 抗震动性: | 9 |

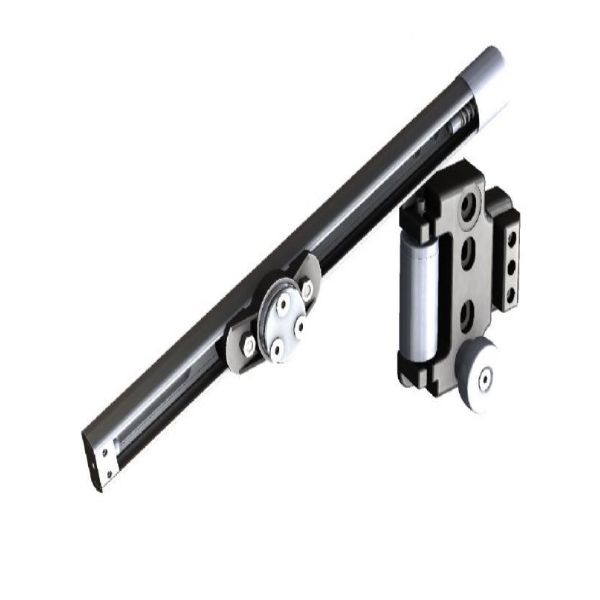

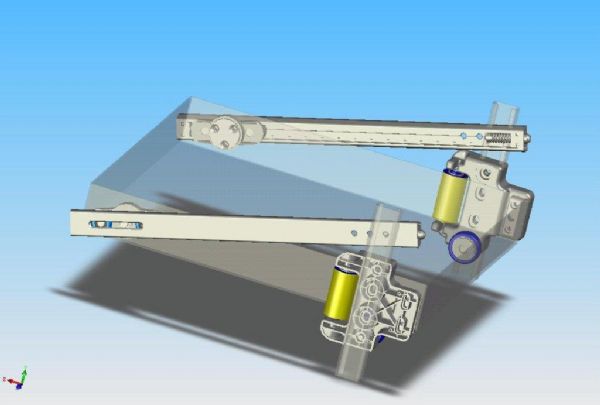

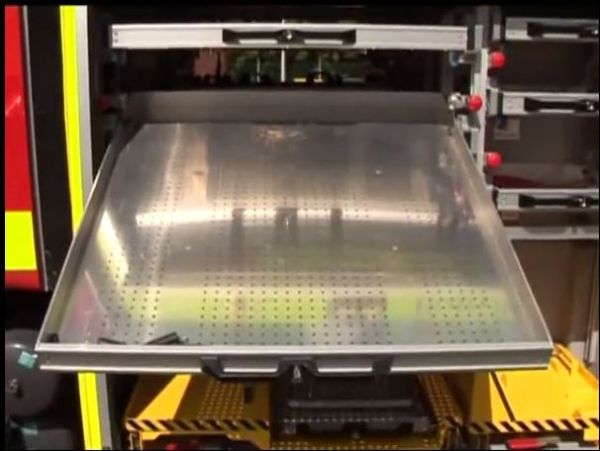

Slide & Tilt是运用了轻巧的铝合金和高强度的PA66打造而成, 整套抽屉系统能够使抽屉在抽出后向外倾斜。系统前端的托架配有斜面和崁槽, 让抽屉在闭合时, 把手锁系统的钢杆能滑顺收合并卡进凹槽, 牢牢固定住抽屉。

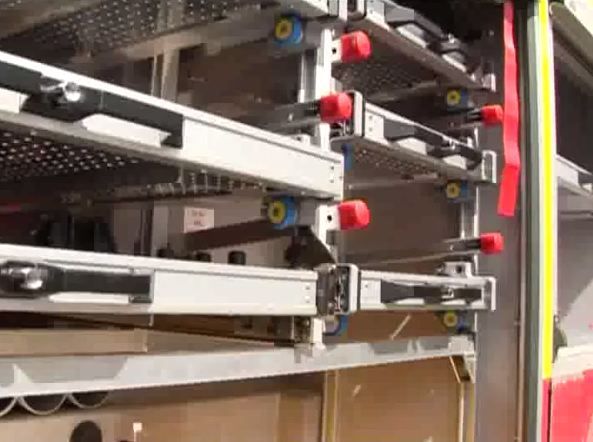

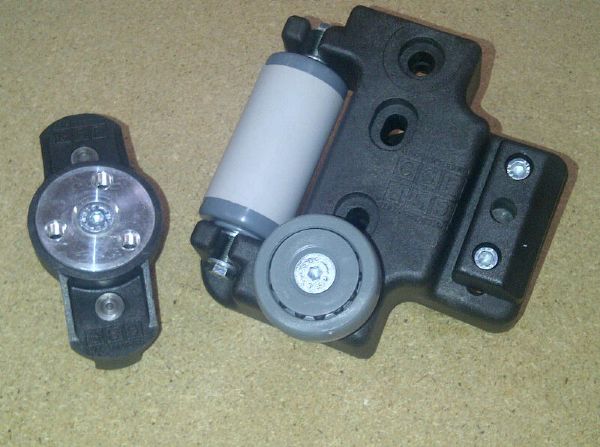

抽屉尾端与滑块及固定片结合, 两者结合后在铝合金轨道内滑移, 轨道外侧配有坚固的冲击缓冲机件。铝合金轨道能被任意调整到设计者需求的理想角度。

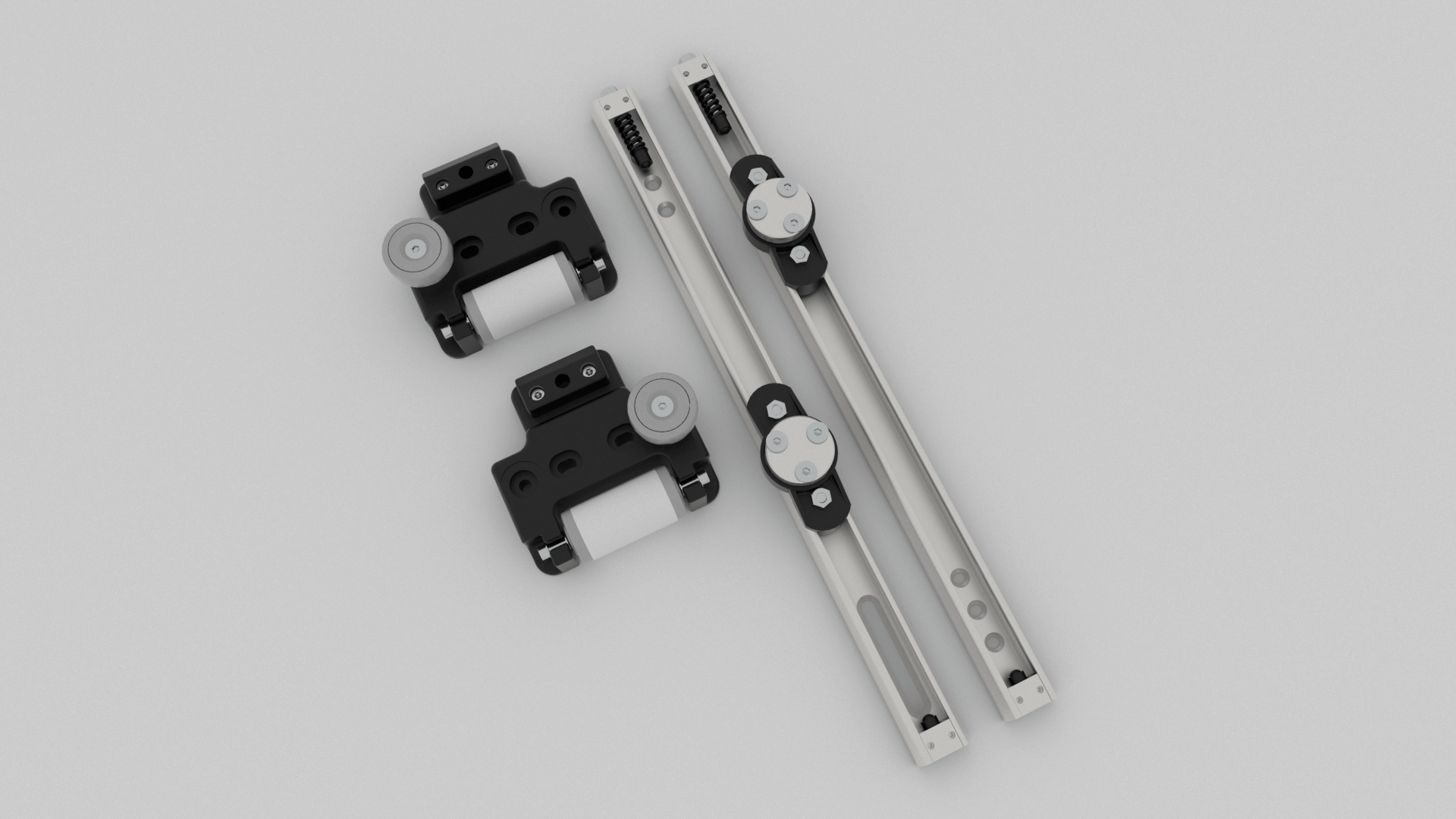

本系统设计赋予抽屉弹性化和模组化。前端托架和固定片为标准零件, 设计只可以根据柜体深度指定轨道长度。
本套系统被设计来承受90kg载重, 考量到健康与安全规章, 我们建议将操作重量维持在35kg。
所有长度皆有建立库存计画并可以在48小时内出货。
产品编号 | 闭合长度 (mm) | 延展长度 (mm) | 最大载重 (kg) |
|---|---|---|---|
| 4070.SYST.0400 | 400mm | 190mm | 90kg |
| 4070.SYST.0450 | 450mm | 240mm | 90kg |
| 4070.SYST.0500 | 500mm | 290mm | 90kg |
| 4070.SYST.0550 | 550mm | 340mm | 90kg |
| 4070.SYST.0600 | 600mm | 390mm | 90kg |
| 4070.SYST.0650 | 650mm | 440mm | 90kg |
| 4070.SYST.0700 | 700mm | 490mm | 75kg |
| 4070.SYST.0750 | 750mm | 540mm | 75kg |
| 4070.SYST.0800 | 800mm | 590mm | 75kg |
| 4070.SYST.0850 | 850mm | 640mm | 75kg |
| 4070.SYST.0900 | 900mm | 690mm | 75kg |
| 4070.SYST.0950 | 950mm | 740mm | 75kg |
| 4070.SYST.1000 | 1000mm | 790mm | 60kg |
| 4070.SYST.1050 | 1050mm | 840mm | 60kg |
| 4070.SYST.1100 | 1100mm | 890mm | 60kg |
| 4070.SYST.1200 | 1200mm | 990mm | 60kg |
| 4070.SYST.1300 | 1300mm | 1090mm | 60kg |
| 4070.SYST.1400 | 1400mm | 1190mm | 60kg |
| 4070.SYST.1500 | 1500mm | 1290mm | 35kg |
| 4070.SYST.1600 | 1600mm | 1390mm | 35kg |
| 4070.SYST.1700 | 1700mm | 1490mm | 35kg |
| 4070.SYST.1800 | 1800mm | 1590mm | 25kg |
| 4070.SYST.1900 | 1900mm | 1690mm | 25kg |
| 4070.SYST.2000 | 2000mm | 1790mm | 25kg |
